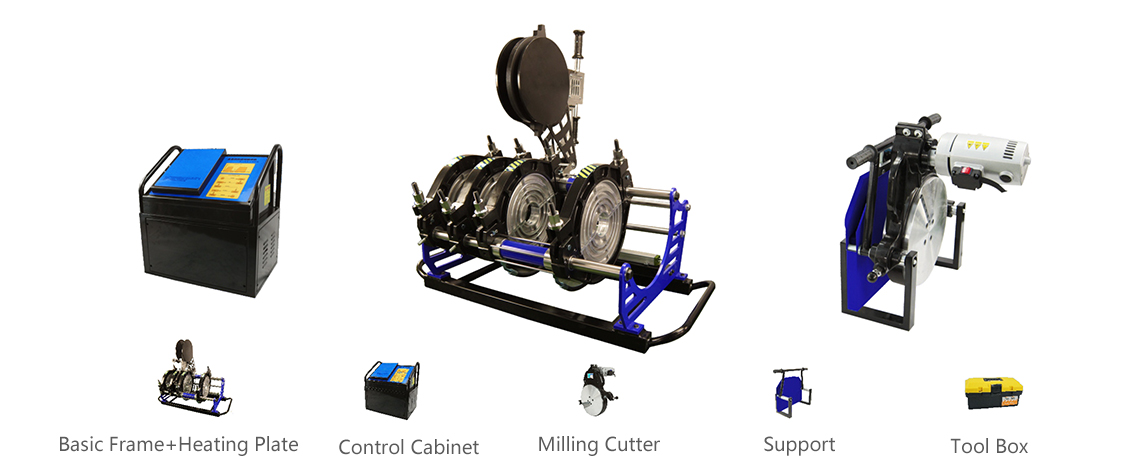

Full-automatic Hydraulic Butt Fusion Machine
Full-automatic Hydraulic Butt Fusion Machine
Application & Features
1. Combination design of the electric and hydraulic unit, easy installation;
2. Use explosion-proof sockets to make operation safer;
3. More robust and durable with 5 cm thickness aluminum clamps;
4. Independent temperature control of the heating plate and PTFE surface coating;
5. Cutting is more stable by use of gear transmission;
6. Independent dual channel timer can record the two periods of heat and cooling, timing alarm over to convenient the user;
7. Big dial, high-precision shock pressure, low temperature resistance, table read mathematical clearly.
| Model | 450 |
|---|---|
| Welding Range(mm) | 280—–450 |
| Size Tolerance | ≤0.5mm |
| Temperature Range | 0-300℃ |
| Temperature Tolerance | ±3℃ |
| Working Pressure | 0-6.3Mpa |
| Control Method | Automatic |
| Total Power | 8.2KW/220V |
| Heating Plate Power | 5.2KW/220V |
| Hydraulic Unit Power | 1.5KW/220V |
| Milling Cutter Power | 1.5KW/220V |
